Automotive

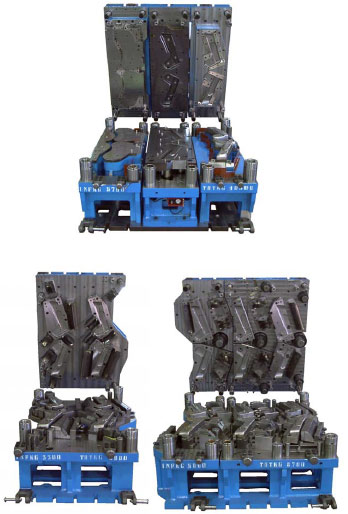

Side member driver seat

stampo-auto
Material FEE 355
Thickness 2,0 mm
Type of die transfer - 8 OPs
Falls 2
Dimensions of die 4500 x 1600 x 1100 mm
Weight of die 25.000 kg
Blank 1085 x 285 mm
Productivity 12 strokes/minute
Lead-time 8 months

Results:

Very small drawing radius - reached with a complex cycle and using special materials and hardening.
Very small tolerance on many surfaces.
Since it is an aesthetical part, we have put special care to all components of the die in order to avoid signs on the part.
