Automotive

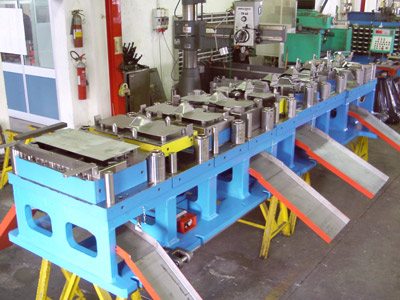

Bracket strg col

stampo-auto
Material FeP04
Thickness 2,7 mm
Type of die transfer – 10 OPs
Dimensions of die 4800x1300x1145 mm
Weight of die 16.000 kg
Blank 650 x 300 mm
Productivity 14 strokes/minute
Lead-time 8 months

Results:

We worked a lot with the customer in co-design to make the piece suitable to be stamped with a transfer tool instead of a manual one.
