Automotive

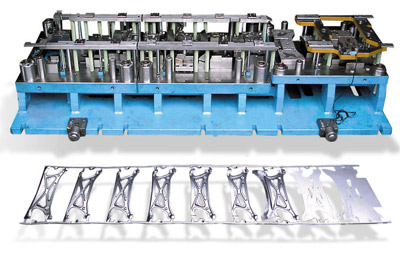

Lower cross member backrest

stampo-auto
Material FeE 355
Thickness 1 mm
Type of die progressive
No. of pitches 10
Dimensions of die 3000 x 1200 x H 850 mm
Weight of die 11.000 kg
Coil 505 mm
Pitch 285 mm
Productivity 15 strokes/minute
Lead-time 3 months

Results:

The part is accomplished with a progressive die, even if it is generally made with a transfer die.
