Automotive

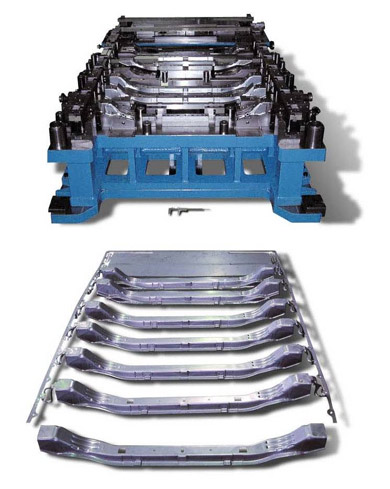

Cross member

stampo-auto
Material FE 220 BH
Thickness 1,2 mm
Type of die progressive
Falls 1
No. of pitches 10
Dimensions of die 2500x1800x1030 mm
Weight of die 16.000 kg
Coil 1.380 mm
Pitch 240 mm
Productivity 15 strokes/minute
Lead-time 6 months

Results:

Hard deep drawing with strong resistance sheet metal made with a progressive die rather than a transfer die.
High speed.
Short time for press set-up.
