Automotive

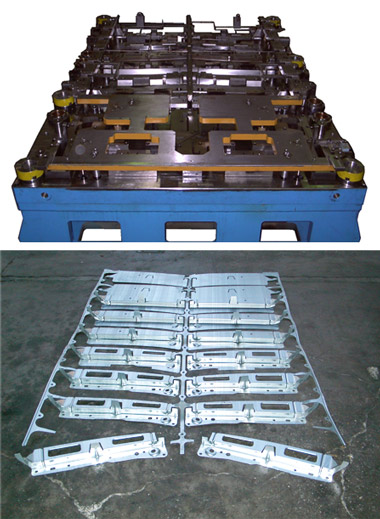

Fender adapter

stampo-auto
Material DX53D-Z100-MB
Thickness 0,65 mm
Type of die progressive
Falls 2
Dimensions of die 2250x1700x1030 mm
Weight of die 16.000 kg
Coil 1.230 mm
Pitch 205 mm
Productivity 16 strokes/minute
Lead-time 7 months

Results:

The very thin sheet has required a big
adjustment of coil feeding.
Very strict tolerances on coupled wings,
even though the sheet was very thin.
