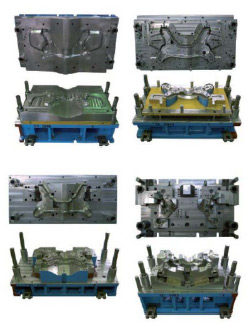

Cross member front wheel suspension 1

stampo-auto
Material FEE 340
Thickness 2,0 mm
Type of die 7 manual
Dimensions of die 1800x1200x900 mm
Weight of die 6.000 kg each
Blank 1410 x 710 mm
Lead-time 6 months

Results:

The suspension, compound of 2 shells, has been realized with only 4 dies for each shell. Very hard deep drawing specially in the “candle” area that are usually welded in a second time. Very small reduction of the sheet metal thickness as requested on this kind of components.
