Automotive

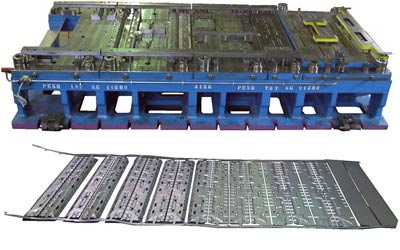

Side reinforcement

stampo-auto
Material FEE 270 F
Thickness 1,2 mm
Type of die progressive
Fall 2
Dimensions of die 4000x2000x1000 mm
Weight of die 21.800 kg
Coil 1.340 mm
Pitch 305 mm
Productivity 22 strokes/minute
Lead-time 6 months

Results:

One die of large dimension to stamp both pieces (right the left).
High speed.
Short time for press set-up.
