Home - products - tools & dies - shells for back suspension




Automotive

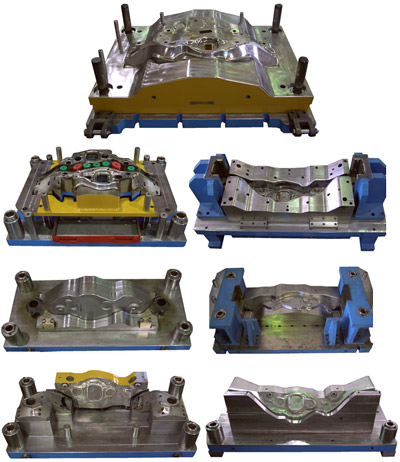

Shells for back suspension

stampo-auto
Material FEE 340
Thickness 2,0 mm
Type of die 7 manual
Falls 2
Dimensions of die 1800x1200x900 mm
Weight of die 6.000 kg ceach
Blank 1410 x 710 mm
Lead-time 4 months

Results:

Very small reduction of the sheet metal thickness.
Very difficult drawing due to the hard material.
Only one kit of dies for two different parts.
