Automotive

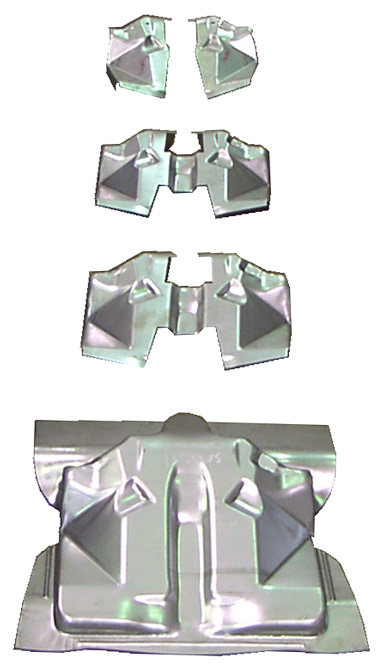

Crash reinforcement

stampo-auto
Material DP600
Thickness 1 mm
Type of die transfer - 4OPs
Falls 2
Dimensions of die 4000 x 1200 x H 1100 mm
Weight of die 16.500 kg
Blank 650 x 690 mm
Pitch 850 mm
Productivity 10 strokes/minute
Lead-time 4 months

Results:
The part is obtained with only 4 operations, in spite of the type of sheet used.
