Home appliances

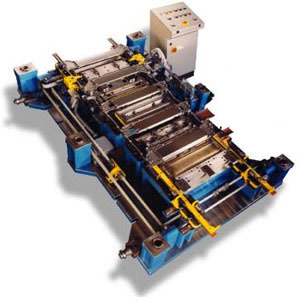

Heating door

scaldavivande
Material Inox
Thickness 0,8 mm
Type of die integrated transfer
Dimensions of die 2700x1200x600 mm
Weight of die 8.000 kg
Coil 655 mm
Pitch 210 mm
Productivity 10 strokes/minute
Lead-time 5 months

Results:

The piece is automatically carried from one station to the next one during the operations The transfer system is integrated into the die and provided with PLC.
This solution allows to stamp with any coil-feeded press.
