Home appliances

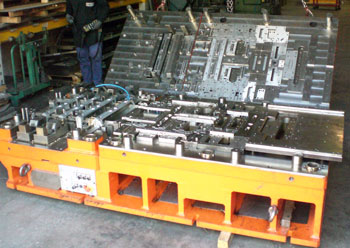

Front upper crossbar dishwasher

scaldavivande
Material P04
Thickness 1 mm
Type of die progressive + transfert integrated
Dimensions of die 2600x1400x770 mm
Weight of die 10.340 kg
Coil wide 860 mm
Pitch 170 mm
Productivity 15 strokes/minute
Lead-time 5 months

Results:

The progressive die becomes transfert in the last part.

Optimum result considering the geometry of the piece and the esthetical parts to be respected
